"AX24" - Air Conditioning Line Clamp Set - $14 per set

Nice reproductions of the two clamps used to secure the steel A/C discharge and suction lines to the core support and inner fenders of almost every application. Both are formed from correct gauge steel with the stiffening characteristics of originals and zinc plated. Clamping surfaces are thermoplastic coated for correct appearance. Includes two PHP zinc plated mounting screws.

Three kits required on most 1966-70 B-Body applications. One kit required on most A and E-Body applications.



"1020" - Fan Belt Idler Pulley Bracket  - $34 each

Excellent reproduction of the idler pulley bracket used on all 1969-72 Big Block applications with A/C without Leece Neville alternator.  Can also be used on 1967-68 applications but the mounting hole and slot are reversed.  Formed from correct gauge steel and powder coated low-gloss black for original appearance and durability.  Reference P/N 2951 020.





"1019" - Fan Belt Idler Bracket & Pulley Assembly - $89 each

Excellent reproduction of the idler bracket & pulley assembly used on all 1969-72 Big Block applications with A/C without Leece Neville alternator.  Can also be used on 1967-68 applications but the mounting hole and slot are reversed.   Reference P/N 2951 019.





"397" - Fan Belt Idler Pulley Assembly - $65 each

A well-needed reproduction of the fan belt idler pulley used on all 1962-74 engines with Air Conditioning without Leece Neville alternator.  New pulley and bearing assembly with authentic formed bearing cover, Grade 8 alloy steel mounting stud, bearing shield, spacer, lock washer, and nut.  Painted low-gloss black for original appearance.  Reference P/N 2240 397.



"758" - Fan Belt Idler Pulley Bearing Shield - $12 each

An excellent reproduction of the fan belt idler pulley bearing shield used on all 1962-74 engines with Air Conditioning without Leece Neville alternator.  Formed from correct gauge material and cadmium plated as original.  Reference P/N 2658 758.

"6166" - Idler Pulley Bracket Spacer - $27 each

Excellent reproduction of the cast idler pulley bracket spacer used on all 1967-68 Big Block applications with A/C and 1969-72 Big Block with Leece-Neville alternator and A/C.  These parts are cast in high-strength aluminum instead of the heavier cast iron of originals, and dipped in low-gloss black for original appearance.  Reference P/N 2465 381.

"1175" - Idler Pulley Bracket Spacer - $27 each

Excellent reproduction of the cast idler pulley bracket spacer used on all 1969-72 Big Block engines with Air Conditioning without Leece-Neville alternator. These parts are cast in high-strength aluminum instead of the heavier cast iron of originals, and dipped in low-gloss black for original appearance.  Reference P/N 2951 176.

"7423" - 1962-68 22" B-Body Radiator Fan Shroud - $249 each

Steel fan shroud for use on 1962-68 B-Body cars with V-8 and 22 radiator.  Two piece unit with formed fan opening lip,  hose reliefs, and contours of an original part.  Top and bottom stiffener is spot welded in place like original.  Made from 16 ga steel like original and powder coated low gloss black.  Comes complete with both hex coni sems nuts to secure the two halves together.  Used on both Small and Big Block applications.  Reference P/N 2417 423 & 2417 427

Mounts to radiator with HWC mounting kit #9212 for 1962-65 cars or kit #9555 for 1966-68 cars (see kits below).

One shroud required per vehicle.

9212.jpg (6672 bytes) "9212" - Fan Shroud Mounting Bracket Kit - $55 per Kit

The kit includes (4) powder coated formed steel brackets, (4) correct 1/4-20 cage nuts for the radiator side brackets, and (8) 1/4-20 x 1/2" hex head coni sems bolts to mount the parts together.  Used on 1962-65 B-Body cars with steel fan shrouds and 22" radiators.

CLICK HERE to view instructions on how to install cage nuts.

One kit required per vehicle.

9555.jpg (6624 bytes) "9555" - Fan Shroud Mounting Bracket Kit - $55 per Kit

The kit includes (4) powder coated formed steel brackets, (4) correct 1/4-20 cage nuts for the radiator side brackets, and (8) 1/4-20 x 1/2" hex head coni sems bolts to mount the parts together.  Used on 1966-68 B-Body cars with steel fan shrouds and 22" radiators.

CLICK HERE to view instructions on how to install cage nuts.

One kit required per vehicle.

614.jpg (4947 bytes) "614" - 22" A-Body Radiator Fan Shroud - $169 each

An excellent reproduction of the 1968-69 A-Body 22" V-8 radiator fan shroud.  Original part number 2785 614.  Correct for all V-8 cars using a fan shroud including 273 & 318 with A/C, 340, 383, and 440 powered Darts, Valiants, and Barracudas.  Injection molded with all of the details of an original part.

One shroud required per vehicle.



325.jpg (4893 bytes) "325" - 22" A-Body Radiator Fan Shroud - $169 each

An excellent reproduction of the 1970-72 A-Body 22" V-8 radiator fan shroud.  Original part number 2998 325.  Correct for all V-8 cars using a fan shroud including 318 with A/C, 340, and 360 powered Darts, Valiants, Dusters, and Demons.   Injection molded with all of the details of an original part.

One shroud required per vehicle.

130.JPG (4832 bytes) "130" - 22" B & C-Body Radiator Fan Shroud - $169 each

An excellent reproduction of the 1969 B- & C-Body 22" V-8 radiator fan shroud.  Original part number 2949 130.  Correct for 1969 440 powered cars with 22" radiator including Chargers, R/T's, GTX's, and various C-Body models.   Injection molded with all of the details of an original part.

NOTE:  Can also be used on 1966-68 318, 383, and 440 powered B and C-Body cars in conjunction with the #9176 Fan Shroud Mounting Bracket Kit (see above) when used on original equipment radiators that would normally use a steel shroud.  Will also work on 1969 22" B & C-Body V-8 radiators used for 318 and 383 equipped cars

One shroud required per vehicle.

328.JPG (4965 bytes) "328" - 22" B & E-Body Radiator Fan Shroud - $169 each

An excellent reproduction of the 1970-73 B- & E-Body 22" V-8 radiator fan shroud.  Original part number 2998 328.  Correct for all V-8 cars using a fan shroud with 22" radiator including 318, 340, 383, and 440 powered Challengers, Barracudas, Chargers, Road Runners, Satellites, Coronets, Super Bees, R/T's, and GTX's.   Injection molded with all of the details of an original part.

One shroud required per vehicle.

9176.jpg (5224 bytes) "9176" - Fan Shroud Mounting Bracket Kit - $70 per Kit

The kit includes (2) powder coated formed steel brackets, (4) correct 1/4-20 cage nuts for the radiator side brackets, and (4) 1/4-20 x 1/2" hex head coni sems bolts to mount the brackets to the radiator.  Used on 1969-73 B-Body and all E-Body cars with the 2949 130 or 2998 328 fan shroud and 22" radiator.  Also used on 1969-72 C-Body cars and 1972-79 Dodge trucks with 22" radiator.

CLICK HERE to view instructions on how to install cage nuts.

One kit required per vehicle.

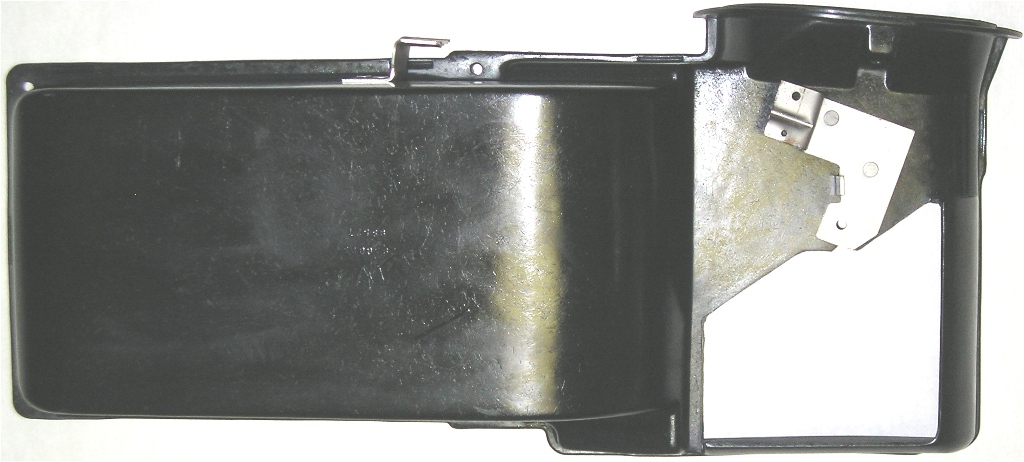

"6623" - E-Body Heater Core Housing - $189 each

An excellent reproduction of the 1970-74 E-Body outer heater core housing for non-Air Conditioned applications.  The original parts are commonly broken near the lower vent opening and this reproduction has been strengthened to make the part stronger than original.  Injection molded with all of the details of an original part.  Includes both vent cable and heater control cable mounting brackets.

One required per vehicle.  CLICK HERE for larger view of product.

875.jpg (7020 bytes) "875" - Radiator Fan Shroud Nuts - $3 Each

Special flange lock nuts used to secure the plastic radiator fan shrouds to the radiator mounting studs.  Cadmium plated as original.

Use 5 nuts on 1966-69 B-Body 26" radiators and 4 nuts on 1969 B-Body 22" radiators.

Not made in USA.

"A" - Big Block Heater Hose Bracket - $20 Each

1969-1974 Non-Air Conditioned Big Block & Hemi Applications.   Bolts to alternator triangle support bracket.

Made from correct gauge steel, cadmium plated & thermo-plastic coated for original appearance.

"AX43" - Small Block Heater Hose Bracket - $20 each

1970 & Later Small Block Applications.  Bolts to right cylinder head.

Made of correct gauge galvanized steel & thermo-plastic coated for original appearance.



"B" - Heater Hose Bracket - $14 Each

1969-1970 B-Body and 1969 Big Block A-Body Applications

Bolts to right inner fender panel above shock tower.  Includes correct hex head mounting screw.

Made from correct gauge steel and cadmium plated as original.



"C" - Heater Hose Bracket - $10 each

1966-1968 Hemi B-Body , 1963-1966 A-Body, 1960’s Pickups

Bolts to right inner fender panel above shock tower.  Includes correct hex head mounting screw.

Made from correct gauge steel and cadmium plated as original.

"D" - Big Block Heater Hose Bracket - $15 each

Some 1967 & All 1968 Big Blocks with A/C, Also Some Non-A/C Applications.  Use on Big Block A-Body Applications.

Fastens into tabs on top of right valve cover.

Made from correct gauge steel and cadmium plated as original.

"E" - Big Block Heater Hose Bracket - $8 each

Some 1967 & All 1968 Non-A/C Big Block Applications

Fastens into tabs on top of right valve cover.

Made from correct gauge steel and cadmium plated as original.

"V" - Big Block Heater Hose Bracket - $20 each

1968 & Prior Non-A/C Big Block & Hemi Applications.   Bolts to alternator triangle support bracket.

Made from correct gauge cadmium plated steel & thermo-plastic coated for original appearance.





"V2" - Big Block Heater Hose Bracket - $22 each

1967-68 all Big Block with A/C applications.   Also used on 1969 Imperial applications with A/C.  Bolts to alternator on top of adjusting strap #987SAC.

Made from correct gauge steel, zinc plated & thermo-plastic coated for original appearance.

Click here to view photograph for proper location.



"0057" - Heater Hose Tie Strap - $6 Each

1960-1978   Used to strap heater hose to A/C line on right side of engine or just the heater hoses together.

Made from correct gauge and temper aluminum for original appearance.  Usually 2 required per vehicle.





"0058" - Big Block Heater Hose Bracket - $20 each

1969-74 Big Block Air Conditioning Applications.  Bolts to #987TAC alternator mounting triangle.  Correct 5/16-18 mounting bolt provided.

Made from correct gauge steel, powder coated low gloss black & then thermo-plastic coated for original appearance.



HNK-1.jpg (5262 bytes) "HNK-1" - Heater Hose Nipple Kit - $15 per set

Big block and Hemi heater hose nipples for 1964-1969 vehicles using 5/8" heater hose.  Patterned after original pieces and zinc plated to prevent corrosion.  One kit required per vehicle.

HNK-2.jpg (4577 bytes) "HNK-2" - Heater Hose Nipple Kit - $15 per set

Big block and Hemi heater hose nipples for 1970 and later vehicles using 1/2" and 5/8" heater hose.  Patterned after original pieces and zinc plated to prevent corrosion.  One kit required per vehicle.

HNK-3.jpg (6507 bytes) "HNK-3" - Heater Hose Nipple Kit - $25 per set

Small block LA engine heater hose nipples for 1964-1969 vehicles using 5/8" heater hose and 3/4" by-pass hose.  Patterned after original pieces and zinc plated to prevent corrosion.  Long nipple should be installed in water pump and short nipple in intake manifold.  One 4-piece kit required per vehicle.

HNK-4.jpg (8961 bytes) "HNK-4" - Heater Hose Nipple Kit - $15 per set

Small block LA engine heater hose nipples for 1970 & later vehicles using 1/2" and 5/8" heater hose and 1" by-pass hose.  Patterned after original pieces and zinc plated to prevent corrosion.  One kit required per vehicle.

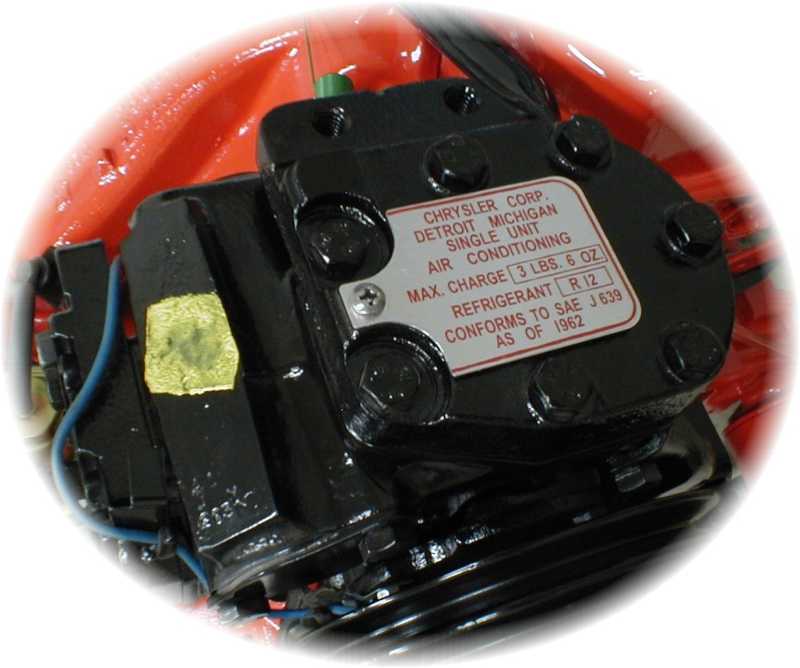

"RV2TAG-A" - A-Body A/C Data Tag for RV-2 Compressor - $15 Each

Air Conditioning data tag for RV-2 compressor shows correct charge capacity and refrigerant type.  For use on 1967-72 A-Body cars.  Made from correct thickness aluminum sheet with a high quality decal installed for a lasting appearance.  Comes with correct mounting screw.

Click here to view photograph for proper location.


"RV2TAG-B" - B, C, & E-Body A/C Data Tag for RV-2 Compressor - $15 Each



Air Conditioning data tag for RV-2 compressor shows correct charge capacity and refrigerant type.  For use on 1966-72 B, C, and E-Body cars.  Can also be used on 1965-72 Imperials with single unit.   Made from correct thickness aluminum sheet with a high quality decal installed for a lasting appearance.  Comes with correct mounting screw.

Click here to view photograph for proper location.
